Victrex® 450GL30 Glass Fibre PEEK Granule

Manufactured to order.
SKU: PEK-GRAN-PE-GL30-0100-XX-XXX
Regular price €43,79 EUR / each Ex. VAT
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Anyag: PEEK GF30

Measurement System: Metric

Colour: Natural/Beige

Continuous use temperature: 260°C/500°F

Flammability: UL94 V-0

Victrex® 450GL30 Glass Fibre PEEK Granule megfelelnek a következő szabványoknak/szabványoknak:

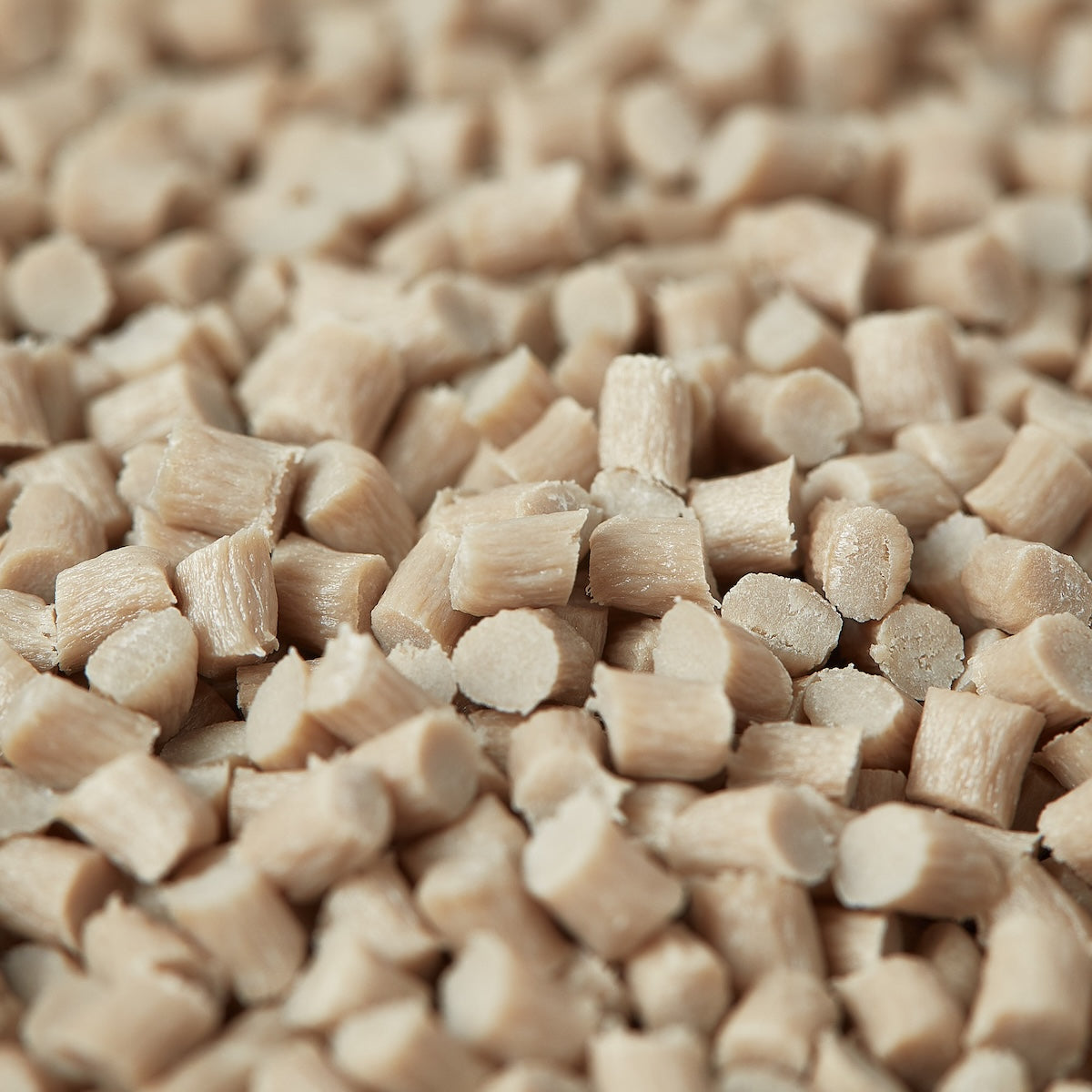

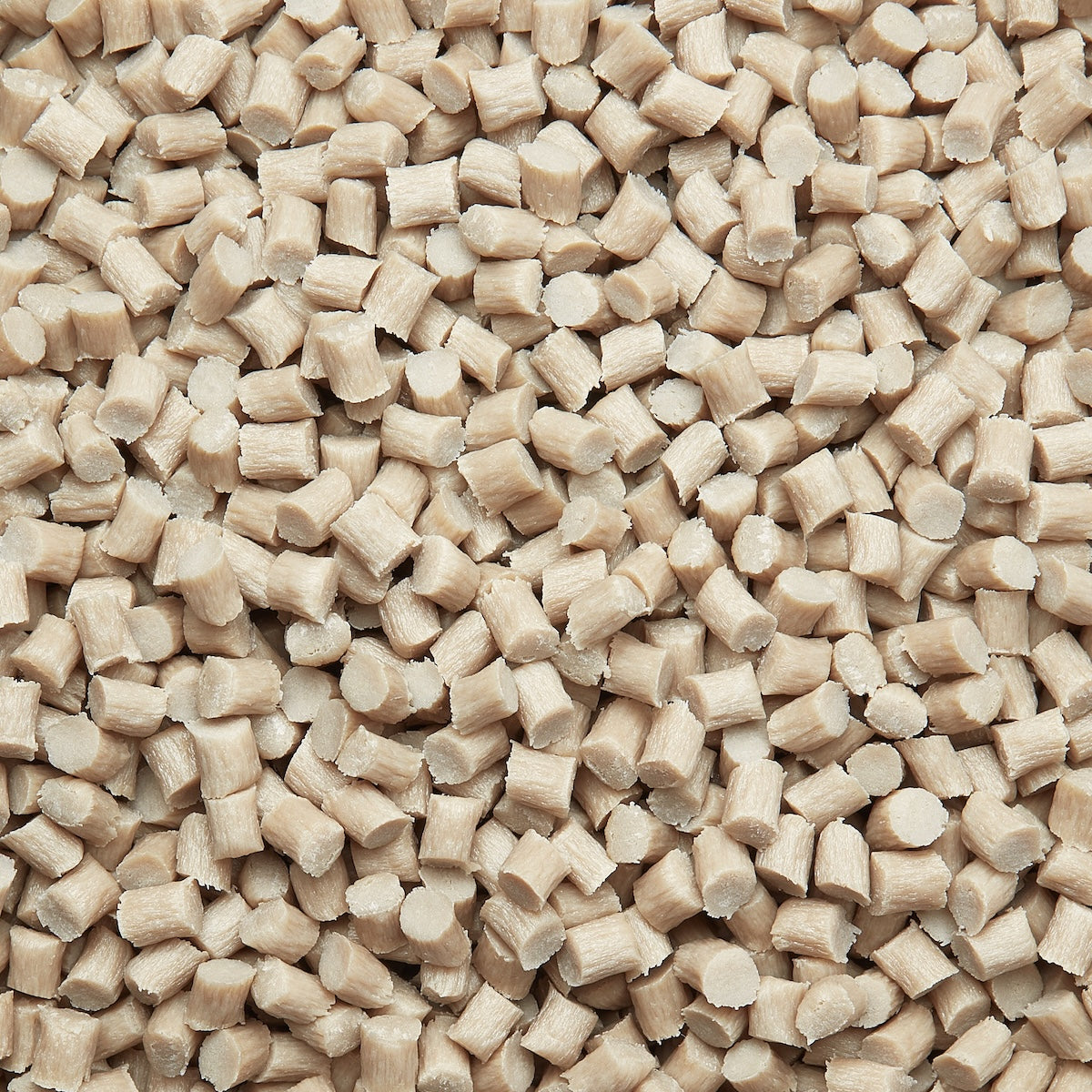

Victrex® PEEK GL30 granule (30% glass fibre reinforced Polyether Ether Ketone) in stock granular form.

- Available in various weights

- Comes with Certificate of Conformity (CofC)

What is PEEK GL30?

Polyetheretherketone (PEEK) GL30 refers to a PEEK polymer that is reinforced with 30% glass fiber (GF). PEEK is a high-performance engineering thermoplastic known for its exceptional mechanical, thermal, and chemical properties. When glass fibers are added to PEEK, it enhances certain properties, making it suitable for a wider range of applications.

Here are some key characteristics of PEEK GL30 granules:

Enhanced Mechanical Strength: The addition of glass fibers improves the tensile strength, stiffness, and impact resistance of the material. This makes PEEK GL30 suitable for applications that require higher mechanical performance.

Dimensional Stability: Glass fiber reinforcement also contributes to improved dimensional stability, reducing the risk of warping or deformation under certain conditions.

Thermal Resistance: PEEK is already known for its excellent thermal stability, and the addition of glass fibers typically does not compromise this property. PEEK GL30 can withstand high temperatures and maintain its mechanical properties in challenging thermal environments.

Chemical Resistance: PEEK, in general, is resistant to a wide range of chemicals, and the addition of glass fibers usually doesn't significantly affect its chemical resistance.

Electrical Properties: PEEK GL30 retains good electrical insulating properties, making it suitable for applications in electronics and electrical engineering.

Applications: PEEK GL30 is commonly used in industries such as aerospace, automotive, oil and gas, medical, and electronics. Specific applications include components in automotive engines, electrical connectors, pump components, and structural parts in various industries.

When working with PEEK GL30 granules or any material, it's important to follow the Victrex® guidelines for processing and handling. This ensures that the material is used optimally and meets the desired performance criteria in the final application. Always refer to the technical datasheets and specifications provided by Victrex® for detailed information on the material's properties and processing guidelines.

A PEEK GF30 adatlap PDF formátumban letölthető az alábbiakban.

Az alkatrészeket 90 napon belül visszaküldheti a teljes összeg visszatérítéséért. További információkért kérjük, tekintse meg a visszaküldési feltételeket.

Key Polyether Ether Ketone GF30 (PEEK GF30) - 30% Glass Fibre Reinforced Properties

Polyether Ether Ketone GF30 (PEEK GF30) - 30% Glass Fibre Reinforced Adatlap

Kövesse az alábbi linket a PEEK GF30 adatlapunk megtekintéséhez. Ez olyan tulajdonságokat tartalmaz, mint a mechanikai, elektromos, termikus és kémiai ellenállás.

PDF letöltése

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PEEK GF30 Kulcsfontosságú tulajdonságok

  • Exceptional Tensile strength - PEEK GF30 components are reinforced with 30% glass-fibre. This provides all the desired unfilled PEEK characteristics as well as a vast increase in strength and stiffness. PEEK GF30 is a true metal replacement.

    Exceptional dimensional stability - Even at high temperatures (260°).

    Low Radio Frequency noise - Comparable to air.

    Excellent weight to strength ratio - Specific gravity (1.30).

  • - High heat operation (260°C)

    - Exceptional chemical resistance

    - Ultra low weight

    - Flame resistance

    - Abrasion resistance

    - Hydrolysis resistance

  • - Highly resistant to radiation

    - Non-Magnetic

    - Very low outgassing in high vacuum

    - Low thermal conductivity

    - Non-Corrosive

    - Food safe (FSA/FDA Approved)
