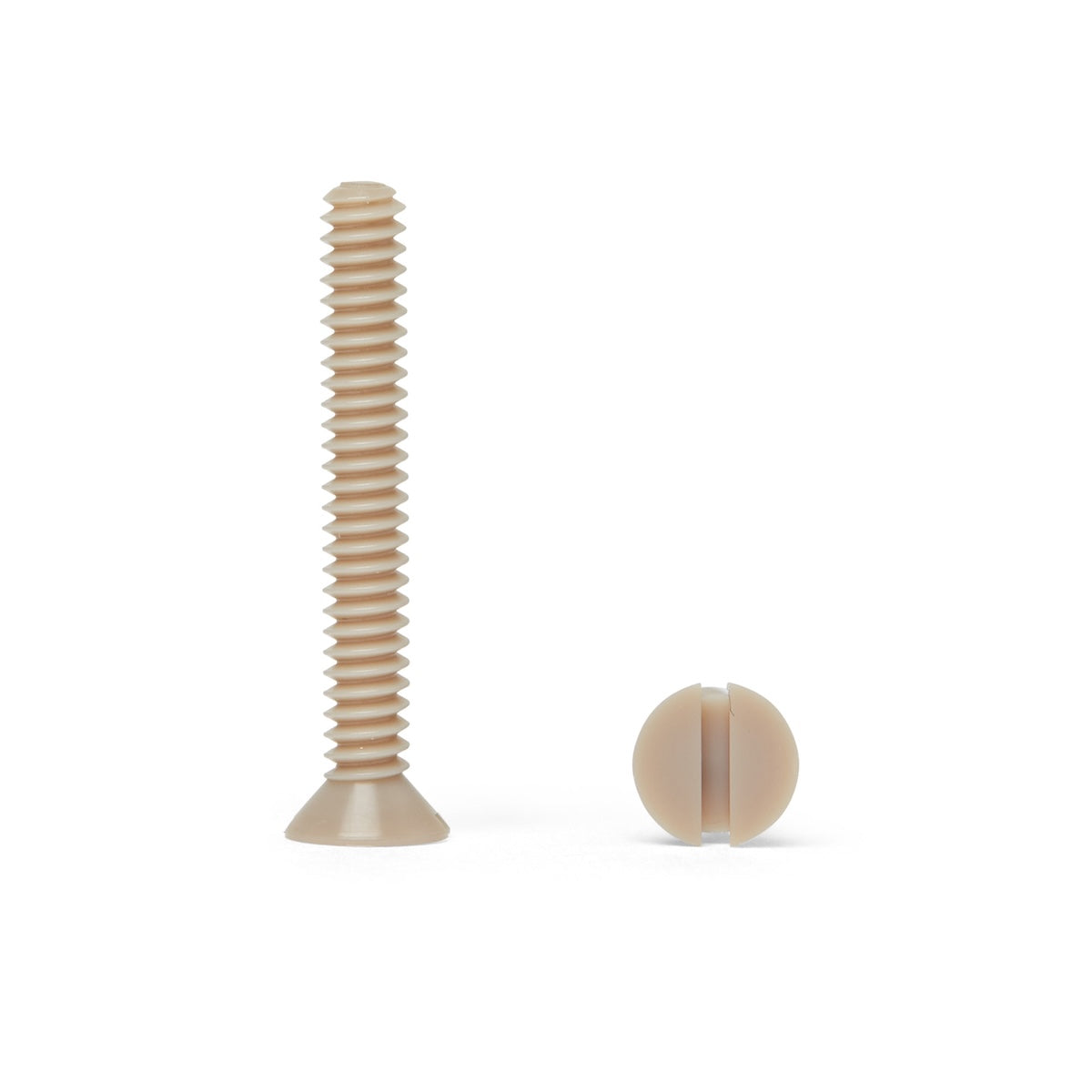

Imperial PEEK Slotted Flat Head Screw

Manufactured to order.
SKU: PKSFHIMP44014
Regular price €1,03 - €1,58 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €1,58
20 pcs €1,50
50 pcs €1,42
100 pcs €1,26
250 pcs €1,19
500 pcs €1,11
1000 pcs €1,03
2000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Anyag: PEEK

Measurement System: Imperial

Drive Type: Slotted

Natural

Maximum Temperature: 260°C/500°F

Flammability: UL94 V-0

Imperial PEEK Slotted Flat Head Screw megfelelnek a következő szabványoknak/szabványoknak:

Imperial PEEK Slotted Flat Head Screws, available in thread sizes ranging from 4-40 to 10-32 and lengths from 1/4" to 1", are precision-engineered fasteners made from Polyether Ether Ketone (PEEK), a high-performance thermoplastic. These screws feature a flat head design that allows them to sit flush with the surface, providing a clean and smooth finish. PEEK is renowned for its high mechanical strength, excellent thermal stability, and outstanding chemical resistance, making these screws ideal for demanding applications. The slotted drive allows for easy installation and removal, while the lightweight nature of PEEK makes these screws suitable for use in various industries, including electronics, aerospace, and medical devices.

Imperial Thread Size – 4-40, 6-32, 8-32, 10-32

Length (In) – ¼”, 5/16”, 3/8”, ½”, 5/8”, ¾”, 7/8”, 1”

Advantages of Using Imperial PEEK Slotted Flat Head Screws:

High Mechanical Strength: PEEK provides excellent tensile and compressive strength, ensuring robust and reliable fastening in critical applications.

Thermal Stability: The material maintains its mechanical properties over a wide temperature range, making it suitable for both high-temperature and low-temperature environments.

Chemical Resistance: PEEK is resistant to a wide range of chemicals, including acids, bases, and solvents, ensuring durability in corrosive environments.

Electrical Insulation: PEEK offers excellent electrical insulating properties, making these screws ideal for use in electronic and electrical applications.

Lightweight: PEEK screws are significantly lighter than metal alternatives, reducing the overall weight of assemblies and making them easier to handle.

Corrosion Resistance: PEEK is naturally resistant to corrosion, ensuring long-lasting performance even in harsh conditions.

Specific Applications of Imperial PEEK Slotted Flat Head Screws:

Electronics and Electrical Equipment:

Used in securing components within electronic devices, where electrical insulation and corrosion resistance are essential.

Ideal for fastening circuit boards, connectors, and other sensitive electronic components.

Aerospace:

Employed in aircraft and spacecraft systems where lightweight and high-strength fasteners are critical.

Suitable for applications requiring resistance to radiation and extreme temperatures.

Chemical Processing:

Applied in securing components in chemical processing equipment, benefiting from PEEK's resistance to aggressive chemicals and high temperatures.

Ideal for use in pumps, valves, and reactors where durable, corrosion-resistant fasteners are needed.

Medical Devices:

Utilised in the assembly of medical instruments and devices, taking advantage of PEEK's biocompatibility and resistance to sterilisation processes.

Suitable for diagnostic and analytical equipment where precise, non-reactive fasteners are required.

Automotive Industry:

Used in automotive electronics and engine components, where heat resistance and chemical resistance are essential.

Applied in hybrid and electric vehicles, providing a lightweight, durable fastening solution.

Imperial PEEK Slotted Flat Head Screws, available in thread sizes from 4-40 to 10-32 and lengths from 1/4" to 1", are made from Polyether Ether Ketone (PEEK), known for its exceptional mechanical strength, thermal stability, and chemical resistance. These screws are ideal for a wide range of applications, including electronics, aerospace, chemical processing, medical devices, and automotive industries. The combination of durability, lightweight nature, and resistance to harsh conditions ensures that PEEK slotted flat head screws provide reliable and long-lasting performance in demanding environments.

A PEEK adatlap PDF formátumban letölthető az alábbiakban.

Az alkatrészeket 90 napon belül visszaküldheti a teljes összeg visszatérítéséért. További információkért kérjük, tekintse meg a visszaküldési feltételeket.

Imperial PEEK Slotted Flat Head Screw
Thread Size Thread Series Head Diameter Head Height
2-56 UNC 0.167 0.058
4-40 UNC 0.219 0.080
6-32 UNC 0.270 0.097
8-32 UNC 0.322 0.115
10-24 UNC 0.373 0.113
10-32 UNF 0.373 0.113
1/4-20 UNC 0.492 0.175

Mérettáblázat

A Imperial PEEK Slotted Flat Head Screw weboldalon a rendelkezésre álló méretek méretei a fenti termékrajzon láthatóak.

Key Polyether Ether Ketone (PEEK) Properties

Victrex® 450G Natural PEEK Granule - High Performance Polymer-Plastic Fastener Components

Polyether Ether Ketone (PEEK) Adatlap

Kövesse az alábbi linket a PEEK adatlapunk megtekintéséhez. Ez olyan tulajdonságokat tartalmaz, mint a mechanikai, elektromos, termikus és kémiai ellenállás.

PDF letöltése

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PEEK Kulcsfontosságú tulajdonságok

  • Exceptional chemical resistance - PEEK can only be dissolved in high concentrations of Nitric and Sulphuric acids.

    Exceptional dimensional stability - Even at high temperatures (260°).

    Low Radio Frequency noise - Comparable to air.

    Excellent weight to strength ratio - Specific gravity (1.30).

  • - High heat operation (260°C)

    - High tensile strength (97mpa)

    - Ultra low weight

    - Flame resistance

    - Abrasion resistance

    - Hydrolysis resistance

  • - Highly resistant to radiation

    - Non-Magnetic

    - Very low outgassing in high vacuum

    - Low thermal conductivity

    - Non-Corrosive

    - Food safe (FSA/FDA Approved)
